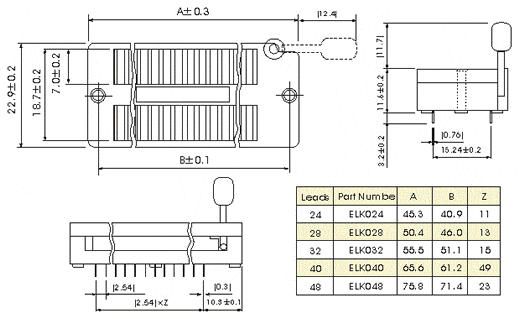

ZIF SOCKET
MATERIAL
Compact mech. construction to ensurer
long term life.
Zero insertion and estraction pressure.
Standard 0.100(2.54mm)IC pitch,easy to
mount in PC board. All plastics are UL 94V-0
grade fire retardant.
Gold plated contact to ensure low contact
resistance and long operation life.

ELECTRICAL:
Contact Rating : 50VDC,100mA
Initial : 10m¦¸¡¡Max.
Dielectric Strength : 20m¦¸ Max
Insulation Resistance : 100M¦¸ Min
Dielectric Strength : 500VDC Min.for
60 seconds.Capacitance between between
adj. contacts :5pF Max.
