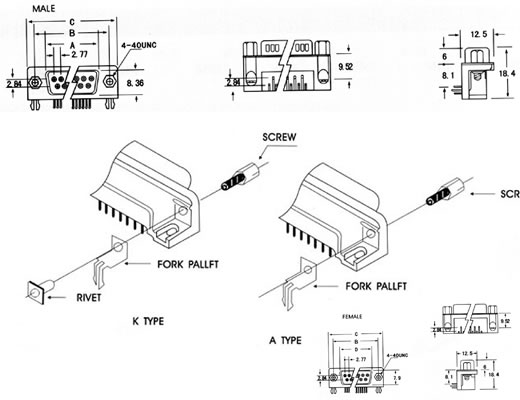

D-SUB RIGHT ANGLE TYPE(7.2mm)

MATERIAL
IInsulator : Thermoplastic {UL 94V-0}
Color : see ordering information
Contact : Copper Alloy
Contact Plated : See ordering information
Shell : Copper Alloy

SPECIFICATION
Storage Temperature : -20-70¡æ
Operating Temperature : 0-85¡æ
Contact Resistance : 20m ¦¸ max.(initial)
Insulation Resistance : 1,000M ¦¸ min
Dielectric Withstanding Voltage : AC1,000V pm
