OX 46

Specifications
Mechanical and Physical Characteristics
Number of Turns 0 to 20
Readability Within 1/1000 of a turn
Weight 55 grams
Markings Black on white background
Accepts Shaft Diameter See below
Locking Brake Yes
----------------------------

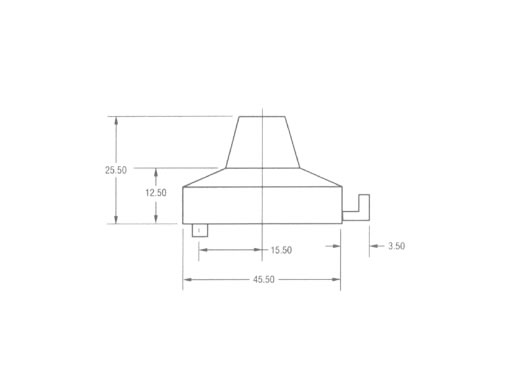

Shaft and Bushing Requirements
Shaft Extensions Beyond Panel 0.689 in. (17.5mm) minimum
0.925 in. (23.5mm) maximum
Bushing Extension Beyond Panel 0.177 in. (4.5mm) maximum
