OX-32F

Dimension 18.6×10.3×15.5
Contact Form 1A/1C
Contact Material Ag Alloy
Contact Ratings 1A:10A125VAC 5A250VAC/30VDC
1C:3A 250VAC/30VDC
Max Switch-Buttoning Voltage 250VAC/30VDC
Max Switch-Buttoning Current 10A
Max Switch-Buttoning Power 1250VA/150W
Initial Contact Resistance 100m? Max
Life Expectancy Electrical 100,000(Rated Load)
Mechanical 10,000,000(No Load)
Rated Voltage 3-24VDC
Coil Power 0.2W,0.45W
Insulation Resistance at 500VDC 100M? Min
Dielectric Strength
50-60Hz(1 minute) B. Open Contacts 1000VAC
Between Contacts & Coil 2500VAC
Operate Time 8ms Max
Release Time 5ms Max
Ambient Temperature -40?to +70?
Weight Approx 6g

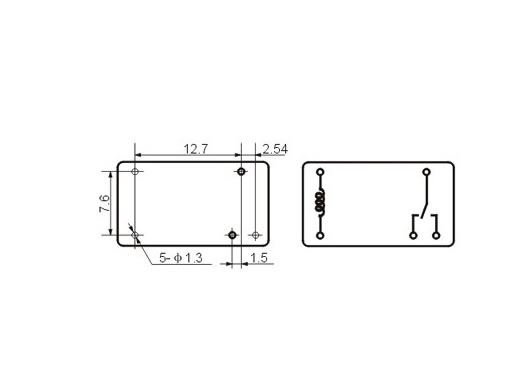

Terminal Type PCB
Cross-reference OEG:OJ/OJE
SONG CHUN: 842A
ZETTLER: AZ765/AZ767
