OX-33F

Dimension 20.5×10.3×15.5
Contact Form 1A/1C
Contact Material Ag Alloy
Contact Ratings 10A 125VAC 5A250VAC/30VDC
Max Switch-Buttoning Voltage 250VAC/30VDC
Max Switch-Buttoning Current 10A
Max Switch-Buttoning Power 1250VA/150W
Initial Contact Resistance 100m? Max
Life Expectancy Electrical 100,000(Rated Load)
Mechanical 10,000,000(No Load)
Rated Voltage 3-48VDC
Coil Power 0.2W,0.45W
Insulation Resistance at 500VDC 100M? Min
Dielectric Strength
50-60Hz(1 minute) Between Open Contacts 1000VAC
Between Contacts & Coil 4000VAC
Operate Time 8ms Max
Release Time 5ms Max
Ambient Temperature -40?to +70?
Weight Approx 7g

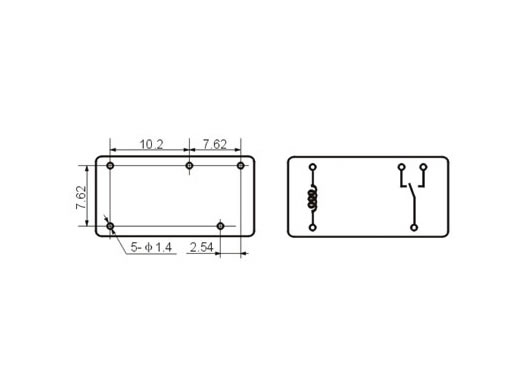

Terminal Type PCB
Cross-reference OMRON: G5S
NAIS: JQ
TAKAMISAWA:JY
