OX-4120

Dimension 26.5×22×22.3/24×19×20(O)
Contact Form 1A / 1C
Contact Material Ag Alloy
Contact Ratings 1A:40A 14VDC
1C:30A 14VDC
Max Switch-Buttoning Voltage 30VDC
Max Switch-Buttoning Current 40A
Max Switch-Buttoning Power 560W
Initial Contact Resistance 100m? Max
Life Expectancy Electrical 100,000(Rated Load)
Mechanical 10,000,000(No Load)
Rated Voltage 6-24VDC
Coil Power 1.6W
General Data
Insulation Resistance at 500VDC 100M? Min
Dielectric Strength
50-60Hz(1 minute) Between Open Contacts 500VAC
Between Contacts & Coil 750VAC
Operate Time 5ms Max
Release Time 4ms Max
Ambient Temperature -40? to +85?
Weight Approx 30g

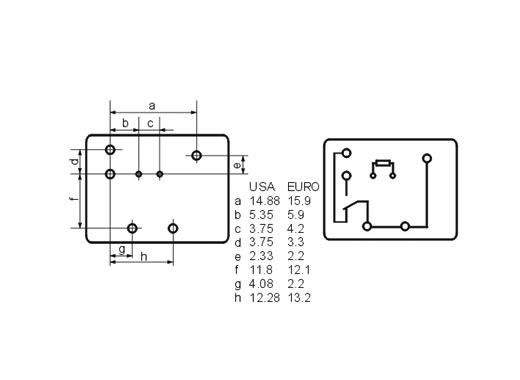

Terminal Type PCB
Cross-reference SONG CHUN : 822
ZETTLER: AZ970/971
FUJITSU: FRL-270
SIEMENS: V23076/V23133
P&B: VKP
