OX-CMA3

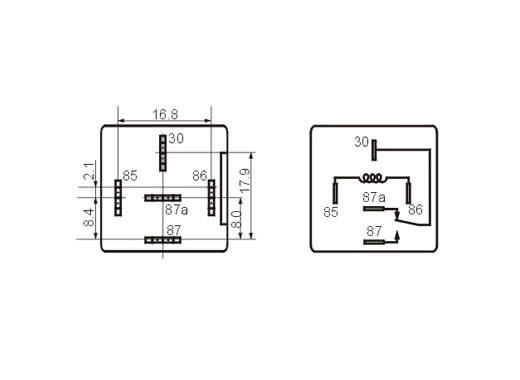

Dimension 28×28×26(+16)
Contact Form 1A / 1B / 1C
Contact Material Ag Alloy
Contact Ratings 1A:40A 14VDC
1C:30A 14VDC
Max Switch-Buttoning Voltage 30VDC
Max Switch-Buttoning Current 40A
Max Switch-Buttoning Power 560W
Initial Contact Resistance 100m? Max
Life Expectancy Electrical 100,000(Rated Load)
Mechanical 10,000,000(No Load)
Rated Voltage 6-24VDC
Coil Power 1.6W, 1.9W
Insulation Resistance at 500VDC 100M? Min
Dielectric Strength
50-60Hz(1 minute) Between Open Contacts 500VAC
Between Contacts & Coil 750VAC
Operate Time 10ms Max
Release Time 10ms Max
Ambient Temperature -40? to +85?
Weight Approx 40g
Terminal Type PCB / QUICK
Cross-reference NAIS: CB
OMRON:G8L
SONG CHUN: 792H
ZETTLER: AZ972/973
