OX-T90

Dimension 32.5×27.5×20.4
Contact Form 1A/1B/1C
Contact Material Ag Alloy
Contact Ratings 1A:30A240VAC/20A28VDC
1B:15A240VAC/10A28VDC
1C:20A/10A240VAC/28VDC
Max Switch-Buttoning Voltage 250VAC/30VDC
Max Switch-Buttoning Current 30A
Max Switch-Buttoning Power 6000VA/560W
Initial Contact Resistance 100m? Max
Life Expectancy Electrical 100,000(Rated Load)
Mechanical 10,000,000(No Load)
Rated Voltage 3-48VDC
Coil Power 0.93W
Insulation Resistance at 500VDC 100M? Min
Dielectric Strength
50-60Hz(1 minute) Between Open Contacts 1500VAC
Between Contacts & Coil 2000VAC
Operate Time 15ms Max
Release Time 10ms Max
Ambient Temperature -40? to +85?
Weight Approx 32g

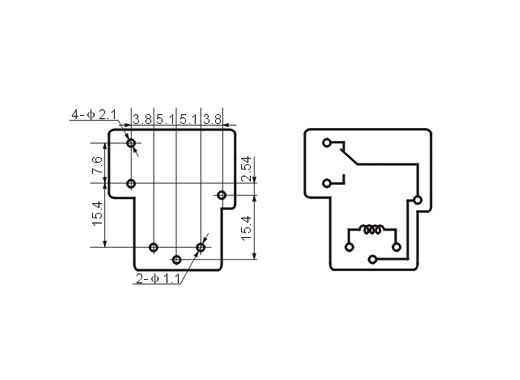

Terminal Type PCB
Cross-reference OMRON: G8P NAIS: JT
ETTLER: AZ2150 SONG CHUN: 832 P& B: T90
