OX6-23F

Dimension 12.5¡Á7.5¡Á10
Contact Form 1C
Contact Material Au+Ag
Contact Ratings 1A:125VAC/30VDC
Max Switch-Buttoning Voltage 125VAC/30VDC
Max Switch-Buttoning Current 1A
Max Switch-Buttoning Power 125VA/30W
Initial Contact Resistance 50m¦¸ Max
Life Expectancy Electrical 100,000(Rated Load)
Mechanical 10,000,000(No Load)
Rated Voltage 3-24VDC
Coil Power 0.15W,0.2W
Insulation Resistance at 500VDC 100M¦¸ Min
Dielectric Strength
50-60Hz(1 minute) Between Open Contacts 500VAC
Between Contacts & Coil 1000VAC
Operate Time 5ms Max
Release Time 5ms Max
Ambient Temperature -30¡æ to +70¡æ
Weight Approx 1.8g

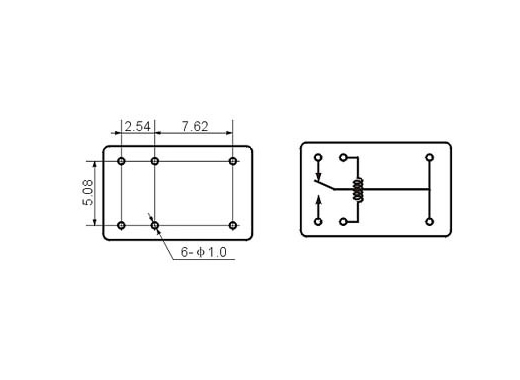

Terminal Type PCB
Cross-reference OMRON: G5V-1
NAIS: HY TAKAMISAWA:SY OEG:TSC
