OX6-4100H-1

Dimension 15.5¡Á10.5¡Á11.8
Contact Form 1A/1C
Contact Material Au+Ag
Contact Ratings 1A:120VAC/24VDC
3A:120VAC/24VDC
Max Switch-Buttoning Voltage 240VAC/60VDC
Max Switch-Buttoning Current 3A
Max Switch-Buttoning Power 240VA/90W
Initial Contact Resistance 50m¦¸ Max
Life Expectancy Electrical 100,000(Rated Load)
Mechanical 10,000,000(No Load)
Rated Voltage 3-24VDC
Coil Power 0.2W,0.36W,0.45W
Insulation Resistance at 500VDC 100M¦¸ Min
Dielectric Strength
50-60Hz(1 minute) Between Open Contacts 500VAC
Between Contacts & Coil 1000VAC
Operate Time 5ms Max
Release Time 5ms Max
Ambient Temperature -25¡æ to +70¡æ
Weight Approx 4g
Terminal Type PCB
Cross-reference OMRON: G2E
FUJITSU: FBR211SC/SE
OEG:OUA/OUAZ ZETTLER:AZ5/952
SONG CHUN: 842A P&B: T81

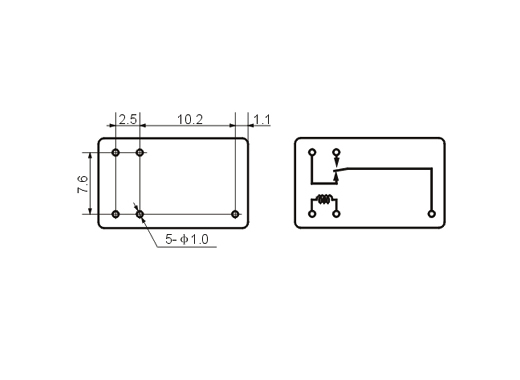

Görüntüyü yazdırmak için üzerine tıklayınız.
