OX8-22F

Dimension 20.2×16.5×20.2
Contact Form 1A/1C
Contact Material Ag Alloy
Contact Ratings 1A:12A240VAC/15A125VAC/24VDC
1C:10A240VAC/12A125VAC/24VDC
Max Switch-Buttoning Voltage 250VAC/30VDC
Max Switch-Buttoning Current 15A
Max Switch-Buttoning Power 2400VA/240W
Initial Contact Resistance 50m? Max
Life Expectancy Electrical 100,000(Rated Load)
Mechanical 10,000,000(No Load)
Rated Voltage 3-48VDC
Coil Power 0.36W,0.45W
Insulation Resistance at 500VDC 100M? Min
Dielectric Strength
50-60Hz(1 minute) Between Open Contacts 750VAC
Between Contacts & Coil 1500VAC
Operate Time 10ms Max
Release Time 5ms Max
Ambient Temperature -40? to +85?
Weight Approx 13g

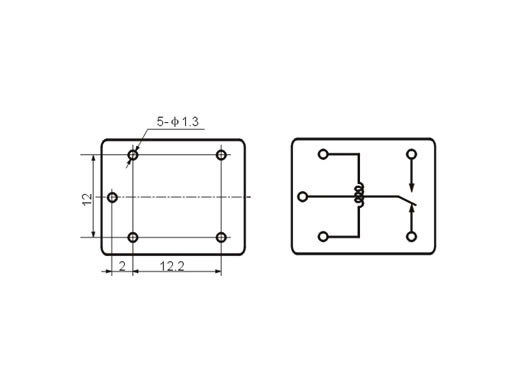

Terminal Type PCB
Cross-reference OMRON: G5L
OEG: SRUDH SONG CHUN : 801H FUJITSU:FBR100
