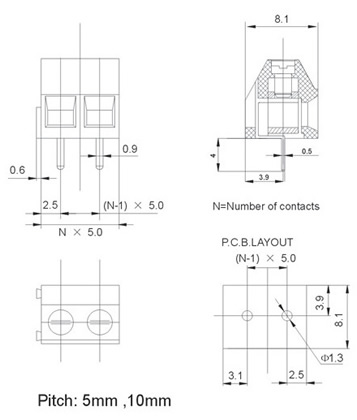

OX 127

Material
Screws: M3 steel Zinc plated
Contact: Brass
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 150V
Rated current: 13.5A
Contact resistance: 20m¦¸
Insulation resistance: 5000m¦¸/1000V
Withstanding voltage: AC 1500V/1 Min
Wire range: 26-16AWG 1.5MM2

Mechanical
Temp. Range: -40¡æ~ +105¡æ
MAX Soldering: +250¡æ, for 5 Sec.
Torque: 0.5Nm(4.5lb.in)
Strip length: 5-6mm
